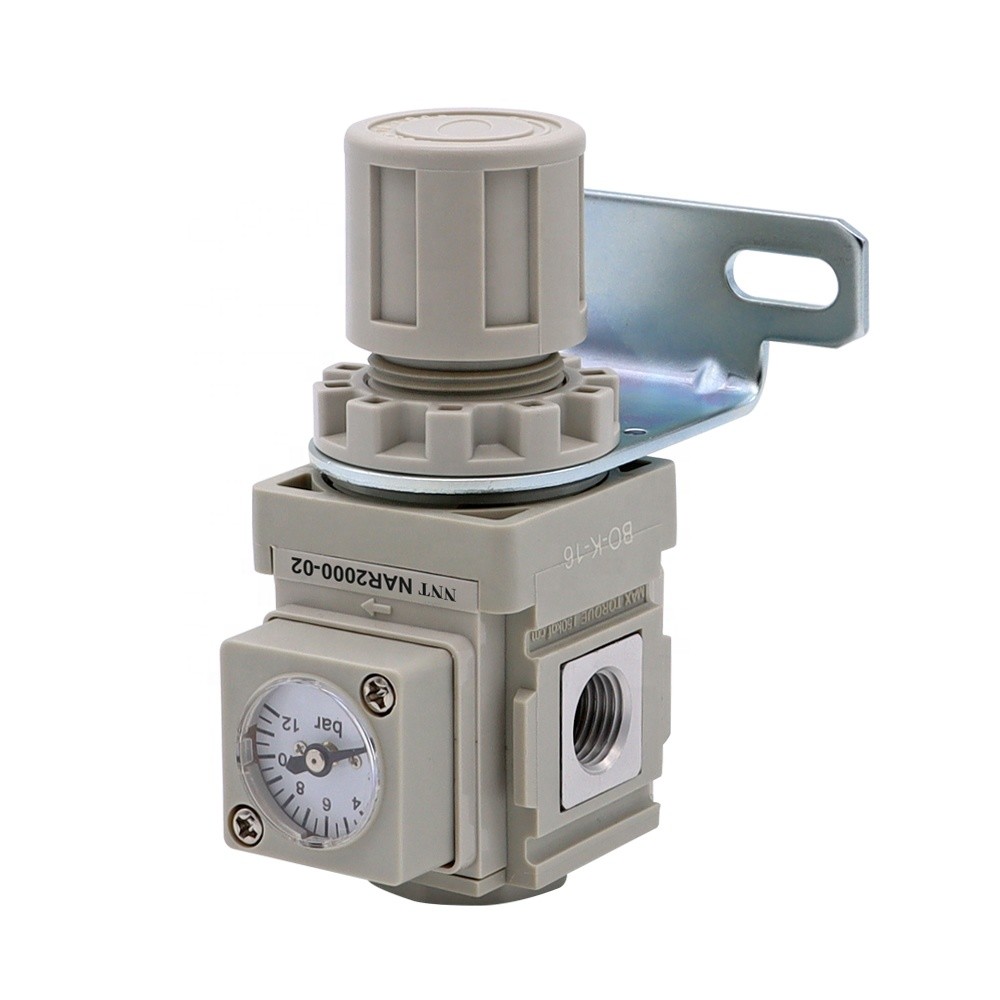

130psi Electric Pneumatic Regulator AR2000 Series Air Pressure Regulator
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | NNT |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiate |
|---|---|
| Price: | negotiate |
| Packaging Details: | Carton box individually. |
| Delivery Time: | negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Warranty: | 2 Years, 2 Years |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company, Laser Industry, 3C | Weight (KG): | 1.2 |
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Type: | Source Treatment Unit | Material: | Carton Box, Aluminum Alloy |
| Product Name: | Air Regulator | Operating Temperature: | 5~60 ℃ |
| Fluid: | Air | Set Pressure Range: | 0.05 To 0.85 MPa |
| Max. Operating Pressure: | 1 MPa | Proof Pressure: | 1.5 MPa |
| Port Size: | 1/8" 1/4" | Valve Type: | Relieving Type |
| Port: | Shenzhen | ||
| High Light: | 130psi Electric Pneumatic Regulator,Air Pressure Electric Pneumatic Regulator |
||
Product Description
Air Pressure Regulator Hot Selling AR1000 / 2000 / 3000 Series Pressure Regulator
* When the product is in an “as-shipped” condition, the output pressure when a 0% input signal is applied is 0 kPa. However, there are some cases in which there is a residual pressure of 0.005 MPa or less. If the pressure needs to be reduced to 0 kPa, install a 3-port valve on the output side to exhaust the residual pressure.
Product Description
* When the product is in an “as-shipped” condition, the output pressure when a 0% input signal is applied is 0 kPa. However, there are some cases in which there is a residual pressure of 0.005 MPa or less. If the pressure needs to be reduced to 0 kPa, install a 3-port valve on the output side to exhaust the residual pressure.
* The adjustment of a numerical value such as zero or span adjustment is set based on the minimum unit of the output pressure display. (Example: 0.001 to 0.500 MPa) Note that this unit cannot be changed.
* The minimum unit for 0.9 MPa (130 psi) types is 1 psi.
Product Description
Specification
|
Type
|
Source Treatment Unit
|
|
Place of Origin
|
China
|
|
Brand Name
|
NNT
|
|
Product name
|
Air regulator
|
|
Material
|
Aluminum Alloy
|
|
Operating Temperature
|
5~60 ℃
|
|
Set pressure range
|
0.05 to 0.85 MPa
|
|
Max. operating pressure
|
1 MPa
|
|
Proof pressure
|
1.5 MPa
|
|
Port size
|
1/8" 1/4"
|
|
Valve type
|
Relieving type
|
|
Warranty
|
2 years
|
Company Profile
NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.
Our Advantages
Certifications
Packing & Delivery
Carton box individually.
