NNT Compact Industrial Pneumatic Cylinder Repeatability 0.01mm
Product Details:
| Place of Origin: | China |
| Brand Name: | NNT |
| Certification: | CE |
| Model Number: | NMHS4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | US＄45-＄108 |
| Packaging Details: | carton box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000/pieces per month |
|
Detail Information |
|||
| Ambient And Fluid Temperature (°C): | -10~60℃(Not Frozen) | Repeatability (mm): | ±0.01mm |
|---|---|---|---|
| Max. Operating Frequency (c.p.m.): | 60~120 | Auto Switch: | Yes |
| Number Of Auto Switches: | 1pc/2pcs | Auto Switch Model: | NM9BW |
| High Light: | Compact Industrial Pneumatic Cylinder,0.01mm Industrial Pneumatic Cylinder,NNT compact pneumatic cylinder |
||
Product Description

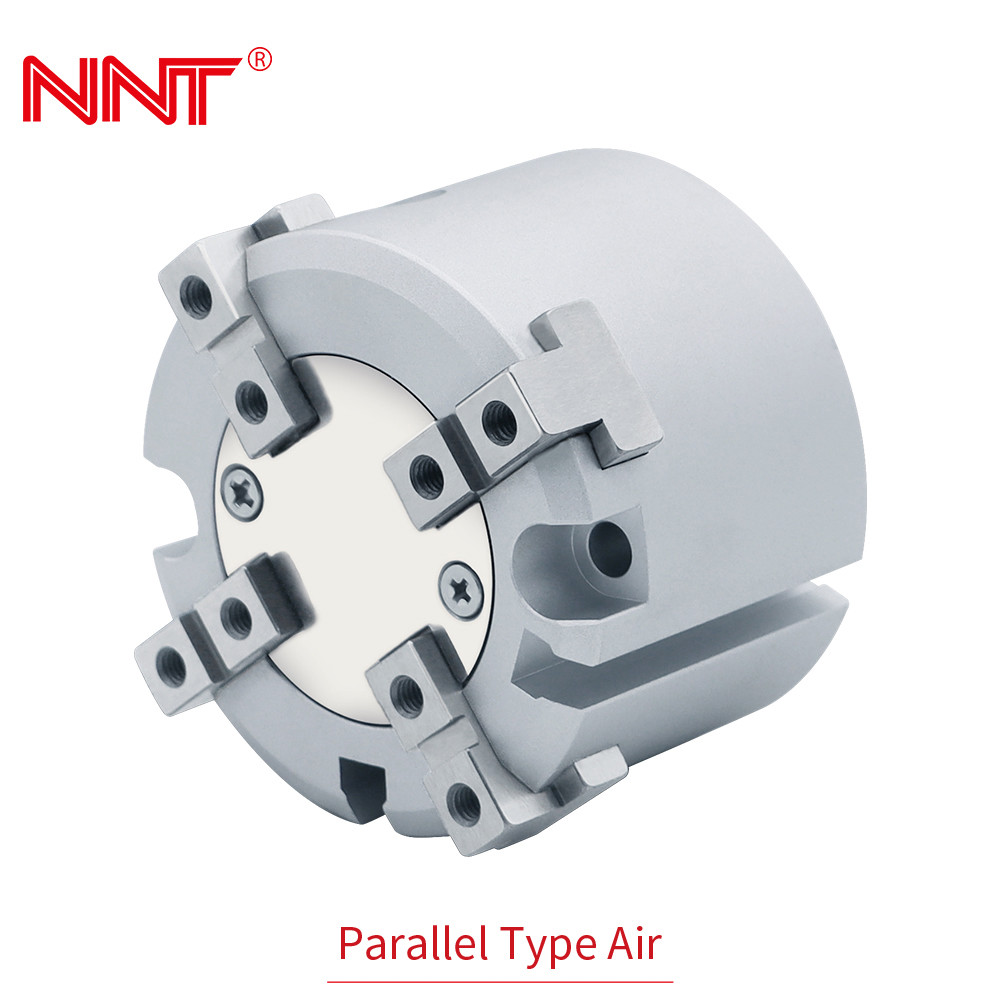

NNT Compact Design Double Acting Machineary Industrial 4 Jaw Pneumatic Gripper
Pneumatic Grippers
A pneumatic gripper uses compressed air to operate its jaws, also called fingers. These gripper fingers act a bit like human fingers by holding, handling, gripping the object into the required place. Most often these pneumatic grippers have 2 fingers (a parallel gripper or an angular gripper) or 3 fingers which use a single/ double acting cylinder for control purposes.
There are 2 main types of gripper, the angular and parallel gripper. The parallel gripper being the most popular and most widely used due to their simplicity and ability to work with different dimensions.
Common place for a pneumatic gripper is as part of an automation process, where individual items such as tiny semiconductors to much larger parts such as car engines are manufactured, equally grippers are often added to robotics to enable and assist them with pick and place work in particular as well as with other interactions.
| Model | NMHS4-16D | NMHS4-20D | NMHS4-25D | NMHS4-32D | NMHS4-40D | NMHS4-50D | NMHS4-63D |
| Bore Size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| External grip | 10 | 19 | 31 | 55 | 88 | 140 | 251 |
| Internal grip | 12 | 21 | 35 | 61 | 97 | 153 | 268 |
| Opening/Closing stroke(mm) | 4 | 4 | 6 | 8 | 8 | 12 | 16 |
| Weight (g) | 66 | 110 | 154 | 300 | 390 | 590 | 1095 |
